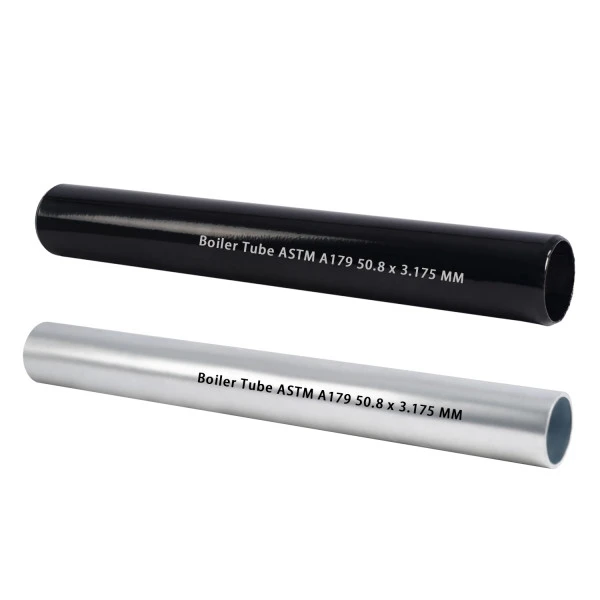

ASTM A179 Alloy Steel Yeeb Nkab Boiler Tubes
Qauv | ASTM A179 / ASME SA179 |
Daim ntawv pov thawj | ISO |
Qib | A179/SA179 |
Sab nraud txoj kab uas hla | 1/4" - 4 3/4" [6.35 - 120.65 mm] |
Thickness | {{0}}.02" - 0.375" [0.51 - 9.53 mm] |
Ntev | 6M / 12M lossis Customized |
Lub xeev xa khoom | Txias Drawn |
Kev xaiv xeem | Hydrostatic / Hardness / Flattening / Flaring / Flange |
Xaus | Plain / Bevel |
Kev siv | Thaum tshav kub kub Exchanger thiab Condenser Tubes |
Nto | Dub / Varnish / Galvanized / Oiled, thiab lwm yam. |
Specification
ASTM A179 los yog ASME SA179 raj yog ib hom seamless yeeb nkab khoom nyob rau hauv carbon, nrog me me phab ntsa thickness thiab diameters. (Feem ntau yog xav tau hauv qab 3 nti.)
Nws npog seamless txias drawn low carbon steel yeeb nkab, rau tubular tshav kub exchanger, condensers thiab lwm yam zoo xws li cov cua kub hloov khoom siv.
Daim ntawv thov
ASTM A179 alloy steel peep feem ntau yog siv nyob rau hauv kub kub boiler raj.

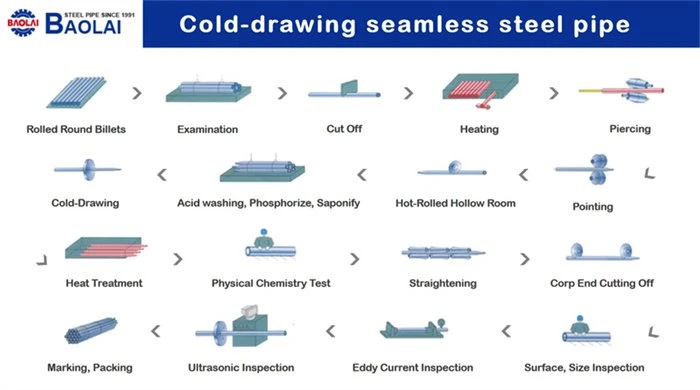

Cov txheej txheem tsim khoom Taw qhia
Cold Drawn Seamless Mechanical Tubing (CDS) yog ib qho txias kos 1018/1026 steel raj uas muaj kev tiv thaiv zoo ib yam, txhim kho kev ua haujlwm thiab ua kom muaj zog thiab ua siab ntev piv rau cov khoom kub dov. Ua los ntawm kub dov 1026, cov txheej txheem kev kos duab txias ua rau lub raj lub cev muaj zog thiab muaj kev tiv thaiv zoo dua thiab txo cov nyiaj siv ua haujlwm tshaj qhov kub tiav seamless.
CDS seamless raj thiab yeeb nkab yog tsim los ntawm tho qhov kub kub thiab tom qab dov uas txo lawv txoj kab uas hla thiab elongates lawv. Cov khoom no ces dhau los ntawm kev tuag thiab hla lub mandrel plug los tsim qhov loj thiab ntsuas qhov tseeb uas yog qhov tseem ceeb ntawm cov txheej txheem kos duab txias.
Piv txwv Loj
Nco tseg: Qee qhov tshwj xeeb tseem ceeb tau qhia hauv qab no, thov hu rau peb kom paub meej ntxiv.
Tawm Dia | Phab ntsa Thickness | |
Ntiv | mm | mm |
1/4" | 6.35 | 0.51/ 0.89/ 1.24/ 1.64 |
1" | 25.4 | 1.24/ 1.64/ 2.11/ 2.41/ 2.77/ 3.05/ 3.76/ 3.96 |
2" | 50.8 | 1.64/ 2.11/ 2.41/ 2.77/ 3.05/ 3.76/ 3.96/ 4.78/ 5.56/ 6.35/ 7.14/ 7.95/ 9.53 |
3" | 76.2 | 1.64/ 2.11/ 2.41/ 2.77/ 3.05/ 3.76/ 3.96/ 4.78/ 5.56/ 6.35/ 7.14/ 7.95/ 9.53 |
4 3/4" | 120.65 | 5.56/ 6.35/ 7.14/ 7.95/ 9.53 |
One-stop kev pab cuam los pab koj kev yuav khoom
Baolai Group tseem muab kev pabcuam thiab kev txhawb nqa tom qab koj yuav khoom. Txhawm rau txuag koj lub sijhawm, peb muab ntau yam kev pabcuam ntxiv rau koj xws li kev ua haujlwm, kev tswj xyuas kev thauj mus los thiab kev sim.
Kev Pabcuam:
· √OEM & ODM
· √ Cov txheej txheem tiv thaiv
· √Saw thiab nplaim taws txiav
√ Beveling, Threading thiab Grooving
· √ Xav paub ntau ntxiv, thov hu rau peb pab neeg pabcuam.
Ntau tshaj li cov chaw tsim khoom, peb muab ib qho kev daws teeb meem rau koj lub lag luam. Hu rau tam sim no!
