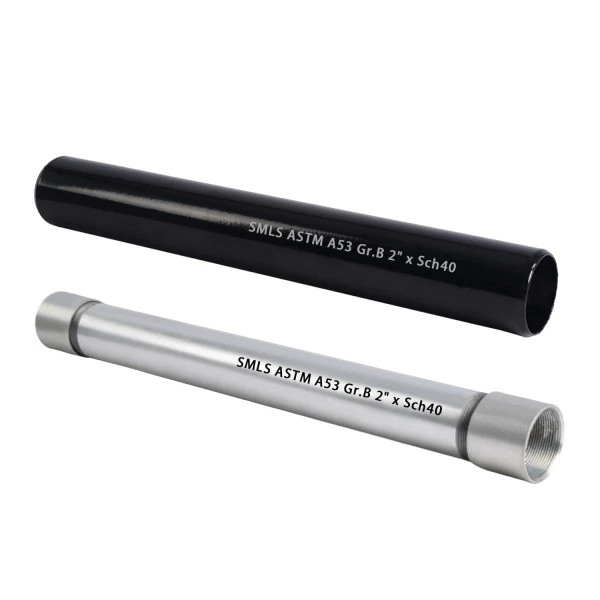

ASTM A53 Carbon Seamless Steel Yeeb Nkab
Qauv | ASTM A53 |
Daim ntawv pov thawj | API |
Qib | Gr.B |
Tawm Dia | 1/4" - 24" (DN8 - DN600) |
Thickness | 2 24-59.54mm |
Ntev | 6M / 12M lossis Customized |
Xaus | Plain / Bevel / Threaded / Grooved |
Kev siv | Cov kav dej xa mus / Cov kav dej thiab cov kav dej |
Nto | Liab / Dub / Varnish / Oiled / Galvanized / 3PE, thiab lwm yam |
Specification
ASTM A53 yeeb nkab yog npaj rau kev siv tshuab thiab tsis tshua muaj siab thiab tseem siv tau rau kev siv zoo tib yam hauv chav dej, dej, roj thiab cua. Nws yog qhov tsim nyog rau kev vuam thiab kev tsim cov haujlwm uas muaj xws li coiling, dabtsi yog khoov, thiab flanging, raws li qee qhov kev tsim nyog.Qhov loj ntawm ASTM A53 / ASME SA 53 carbon yeeb nkab yog 1/4 txog 26 nti thiab sch10 rau sch160. A53 cov kav dej tuaj yeem welded, flanged thiab tsim raws li qhov xav tau, thiab muaj peb hom tseem ceeb ("S" seamless kub dov thiab txias tiav).

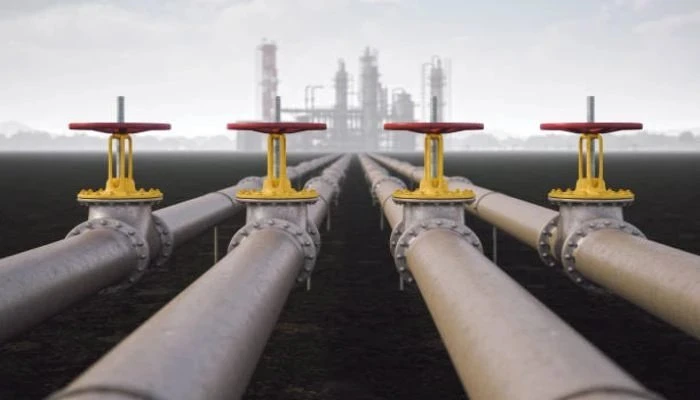

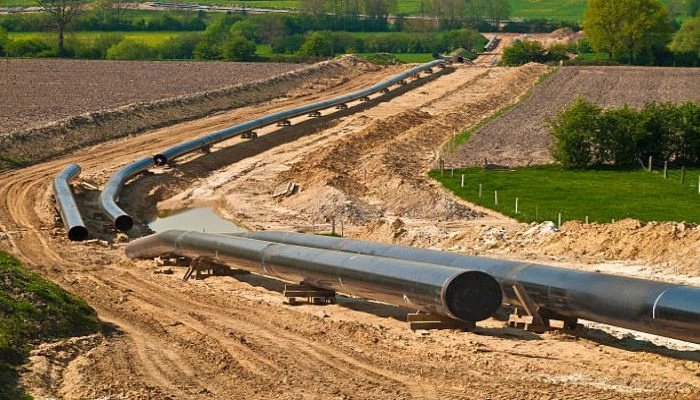

Daim ntawv thov

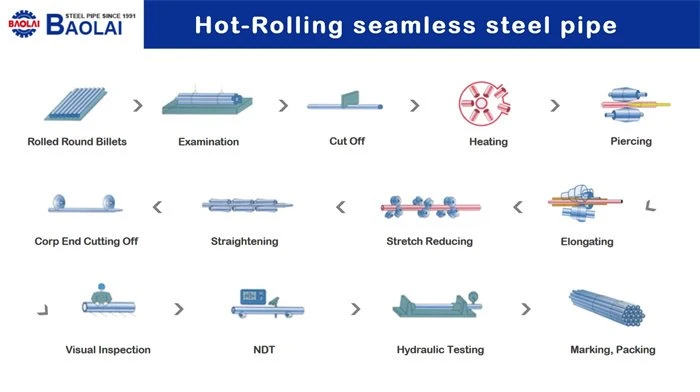

Cov txheej txheem tsim khoom Taw qhia
Kub dov seamless (HRS) raj (tseem hu ua HFS lossis Kub tiav seamless) yog cov khoom lag luam qis dua li CDS raj thiab yog cov khoom siv zoo rau cov ntawv thov uas tsis tas yuav tsum muaj qhov zoo sib xws thiab qhov zoo ntawm qhov chaw tiav uas CDS raj muab . Yog hais tias yuav tsum tau nruj tolerances, machining yog siv los ua kom tiav cov khoom kom meej specifications. Kub tiav seamless tubing yog ib qho yooj yim rau tshuab kom tau raws li cov kev cai. HRS yog siv rau cov khoom uas xav tau cov phab ntsa tuab thiab cov khoom siv muaj zog.
Piv txwv Loj
Nco tseg: Qee qhov tshwj xeeb tseem ceeb tau qhia hauv qab no, thovtiv tauj pebkom paub meej ntxiv.
NPS Tus tsim | DN Tus tsim | Sab nraud txoj kab uas hla | Phab ntsa Thickness | Chav kawm hnyav | Teem caij Tsis muaj. | Test Siab, psi | |
mm | mm | Qib A | Qib B | ||||
1/2" | 15 | 21.3 | 2.77 | STD | 40 | 4.8 | 4.8 |
3.73 | XS | 80 | 5.9 | 5.9 | |||
4.78 | - | 160 | 6.2 | 6.2 | |||
7.47 | XXS | - | 6.9 | 6.9 | |||
6" | 150 | 168.3 | 4.78 | - | - | 7.0 | 8.2 |
5.56 | - | - | 8.2 | 9.6 | |||
6.35 | - | - | 9.4 | 10.9 | |||
7.11 | STD | 40 | 10.5 | 13.0 | |||
7.92 | - | - | 11.7 | 13.7 | |||
8.74 | - | - | 12.9 | 15.0 | |||
9.52 | - | - | 14.1 | 16.4 | |||
10.97 | XS | 80 | 16.2 | 18.9 |
One-stop kev pab cuam los pab koj kev yuav khoom
Baolai Group tseem muab kev pabcuam thiab kev txhawb nqa tom qab koj yuav khoom. Txhawm rau txuag koj lub sijhawm, peb muab ntau yam kev pabcuam ntxiv rau koj xws li kev ua haujlwm, kev tswj xyuas kev thauj mus los thiab kev sim.
Kev Pabcuam:
· √OEM & ODM
· √ Cov txheej txheem tiv thaiv
· √Saw thiab nplaim taws txiav
√ Beveling, Threading thiab Grooving
· √ Xav paub ntau ntxiv, thov hu rau peb pab neeg pabcuam.
Ntau tshaj li cov chaw tsim khoom, peb muab ib qho kev daws teeb meem rau koj lub lag luam. Hu rau tam sim no!
