ASTM A192 Alloy Steel Yeeb Nkab Boiler Tubes
2) Cold Drawn tubes yuav tsum tau kho cua sov tom qab qhov kawg txias-tiav ntawm qhov kub ntawm 1200 degree F [650 degree] lossis siab dua.
Qauv | ASTM A192 / ASME SA192 |
Daim ntawv pov thawj | ISO |
Qib | A192/SA192 |
Sab nraud txoj kab uas hla | 1/4" - 4 3/4" [6.35 - 120.65 mm] |
Phab ntsa Thickness | {{0}}.02" - 0.375" [0.51 - 9.53 mm] |
Ntev | 6M / 12M lossis Customized |
Lub xeev xa khoom | Txias Drawn |
Kev xaiv xeem | Hydrostatic / Hardness / Flattening / Flaring / Flange |
Xaus | Plain / Bevel |
Kev siv | High-pressure boiler thiab superheater |
Nto | Dub / Varnish / Galvanized / Oiled, thiab lwm yam. |
Specification
Kev kho cua sov:
1) Kub Rolled tubes yuav tsum tsis txhob kho cua sov.
2) Cold Drawn tubes yuav tsum tau kho cua sov tom qab qhov kawg txias-tiav ntawm qhov kub ntawm 1200 degree F [650 degree] lossis siab dua.
Standard Specification:
ASTM: American Society for Testing and Materials
ASME: American Society of Mechanical Engineers
ASTM A192 thiab ASME SA192, yog universal thiab tuaj yeem cuam tshuam, thiab cov ntsiab lus sab hauv yog tib yam.
Daim ntawv thov

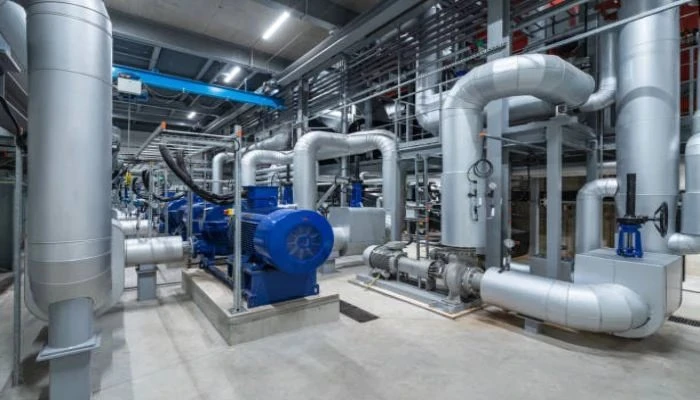

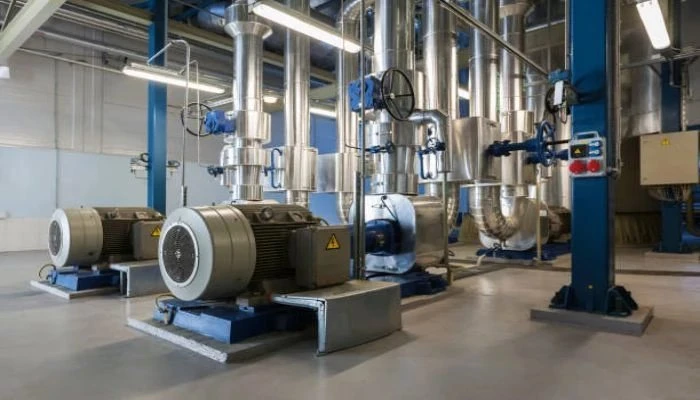

ASTM A192 / ASME SA192 yog lub siab siab seamless carbon steel / manganese boiler raj (kev ua haujlwm siab tsis tshaj 9.8Mpa thiab ua haujlwm kub ntawm 450 degree -650 degree) siv hauv cov cua sov super, dej phab ntsa panels, kub exchangers, condensers, marine daim ntawv thov, refineries, ntawv pulping, petrochemical daim ntaub ntawv, siab hlab ntsha, thiab kev siv engineering.

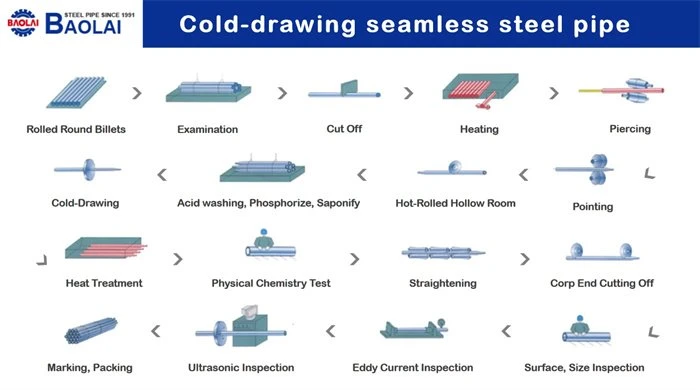

Cov txheej txheem tsim khoom Taw qhia
Cold Drawn Seamless Mechanical Tubing (CDS) yog ib qho txias kos 1018/1026 steel raj uas muaj kev tiv thaiv zoo ib yam, txhim kho kev ua haujlwm thiab ua kom muaj zog thiab ua siab ntev piv rau cov khoom kub dov. Ua los ntawm kub dov 1026, cov txheej txheem kev kos duab txias ua rau lub raj lub cev muaj zog thiab muaj kev tiv thaiv zoo dua thiab txo cov nyiaj siv ua haujlwm tshaj qhov kub tiav seamless.
CDS seamless raj thiab yeeb nkab yog tsim los ntawm kev tho qhov kub kub thiab tom qab dov uas txo lawv txoj kab uas hla thiab elongates lawv. Cov khoom no ces dhau los ntawm kev tuag thiab hla lub mandrel plug los tsim qhov loj thiab ntsuas qhov tseeb uas yog qhov tseem ceeb ntawm cov txheej txheem kos duab txias.
Piv txwv Loj
Nco tseg: Qee qhov tshwj xeeb tseem ceeb tau qhia hauv qab no, thov hu rau peb kom paub meej ntxiv.
Tawm Dia | Phab ntsa Thickness | |
Ntiv | mm | mm |
1/4" | 6.35 | 0.51/ 0.89/ 1.24/ 1.64 |
1" | 25.4 | 1.24/ 1.64/ 2.11/ 2.41/ 2.77/ 3.05/ 3.76/ 3.96 |
2" | 50.8 | 1.64/ 2.11/ 2.41/ 2.77/ 3.05/ 3.76/ 3.96/ 4.78/ 5.56/ 6.35/ 7.14/ 7.95/ 9.53 |
3" | 76.2 | 1.64/ 2.11/ 2.41/ 2.77/ 3.05/ 3.76/ 3.96/ 4.78/ 5.56/ 6.35/ 7.14/ 7.95/ 9.53 |
4 3/4" | 120.65 | 5.56/ 6.35/ 7.14/ 7.95/ 9.53 |
One-stop kev pab cuam los pab koj kev yuav khoom
Baolai Group tseem muab kev pabcuam thiab kev txhawb nqa tom qab koj yuav khoom. Txhawm rau txuag koj lub sijhawm, peb muab ntau yam kev pabcuam ntxiv rau koj xws li kev ua haujlwm, kev tswj xyuas kev thauj mus los thiab kev sim.
Kev Pabcuam:
· √OEM & ODM
· √ Cov txheej txheem tiv thaiv
· √Saw thiab nplaim taws txiav
· Beveling, Threading thiab Grooving
· √ Yog xav paub ntxiv, thov hu rau peb pab neeg pabcuam.
Ntau tshaj li cov chaw tsim khoom, peb muab ib qho kev daws teeb meem rau koj lub lag luam. Hu rau tam sim no!
