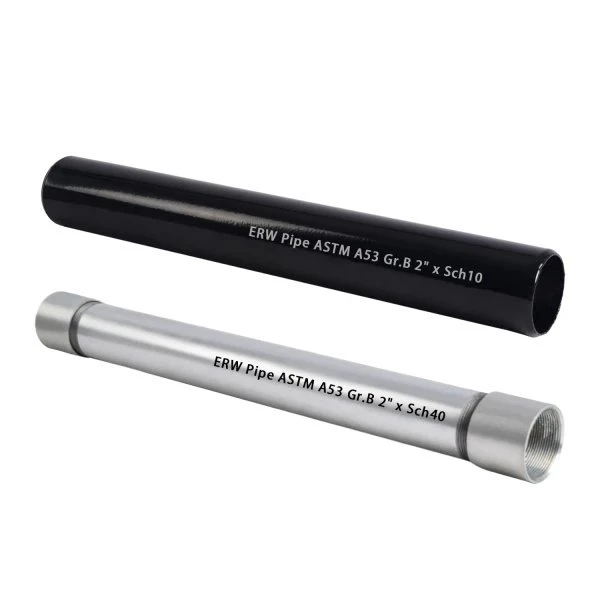

ASTM A53 ERW Welded Steel Yeeb Nkab
Qauv | ASTM A53 |
Daim ntawv pov thawj | API |
Qib | Gr.B |
Tawm Dia | 1/2" - 26" (DN{3}} DN650) |
Phab ntsa Thickness | SIB 10/40/120/160 |
Ntev | 6M / 12M lossis Customized |
Xaus | Plain / Bevel / Threaded / Grooved |
Kev siv | Roj thiab Roj |
Nto | Dub, Vanish Galvanized, 3PE, thiab lwm yam |
Specification
Qhov kev qhia tshwj xeeb no suav nrog welded dub thiab kub-dipped galvanized steel yeeb nkab hauv 1/2 "mus rau 48" thiab thickness yog sch10 txog sch160. Nws yog tsim rau welding, thiab tsim nyog rau kev ua haujlwm nrog coiling, dabtsi yog khoov, thiab flanging.
ASTM A53 cov kav dej yog tsim rau kev siv tshuab thiab tsis tshua muaj siab, nrog rau kev siv dav hauv chav dej, dej, roj, thiab cov kab cua.
Piv txwv Loj
Nco tseg: Qee qhov tshwj xeeb tseem ceeb tau qhia hauv qab no, thov hu rau peb kom paub meej ntxiv.
NPS Tus tsim | DN Tus tsim | Sab nraud txoj kab uas hla | Phab ntsa Thickness | Chav kawm hnyav | Teem caij Tsis muaj. | Test Siab, psi | |
mm | mm | Qib A | Qib B | ||||
1/2" | 15 | 21.3 | 2.77 | STD | 40 | 4.8 | 4.8 |
3.73 | XS | 80 | 5.9 | 5.9 | |||
4.78 | - | 160 | 6.2 | 6.2 | |||
7.47 | XXS | - | 6.9 | 6.9 | |||
6" | 150 | 168.3 | 4.78 | - | - | 7.0 | 8.2 |
5.56 | - | - | 8.2 | 9.6 | |||
6.35 | - | - | 9.4 | 10.9 | |||
7.11 | STD | 40 | 10.5 | 13.0 | |||
7.92 | - | - | 11.7 | 13.7 | |||
8.74 | - | - | 12.9 | 15.0 | |||
9.52 | - | - | 14.1 | 16.4 | |||
10.97 | XS | 80 | 16.2 | 18.9 |

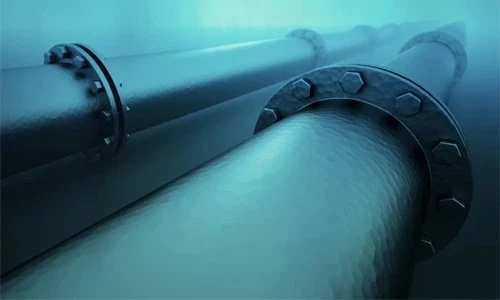

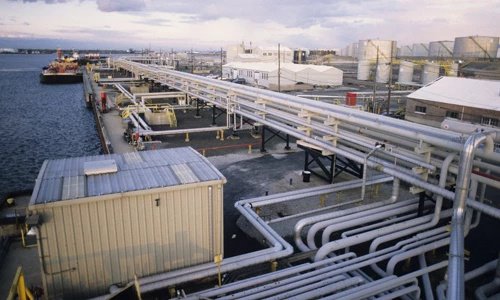

Daim ntawv thov
One-stop kev pab cuam los pab koj kev yuav khoom
Baolai Group tseem muab kev pabcuam thiab kev txhawb nqa tom qab koj yuav khoom. Txhawm rau txuag koj lub sijhawm, peb muab ntau yam kev pabcuam ntxiv rau koj xws li kev ua haujlwm, kev tswj xyuas kev thauj mus los thiab kev sim.
Kev Pabcuam:
· √OEM & ODM
· √ Cov txheej txheem tiv thaiv
· √Saw thiab nplaim taws txiav
· Beveling, Threading thiab Grooving
· √ Yog xav paub ntxiv, thov hu rau peb pab neeg pabcuam.
Ntau tshaj li cov chaw tsim khoom, peb muab ib qho kev daws teeb meem rau koj lub lag luam. Hu rau tam sim no!
