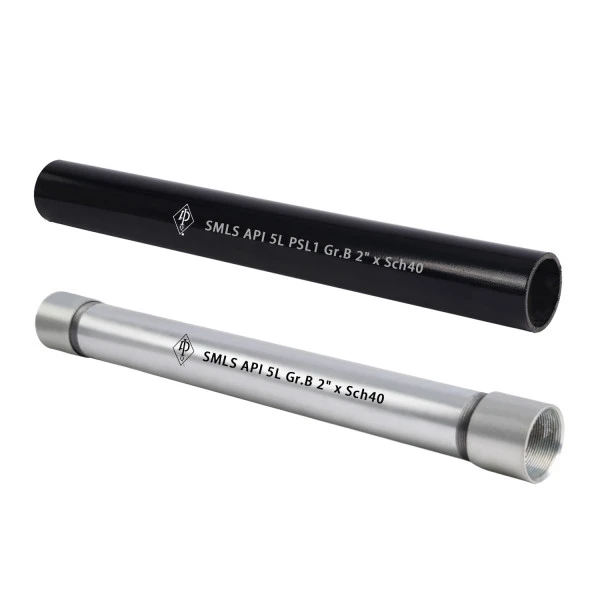

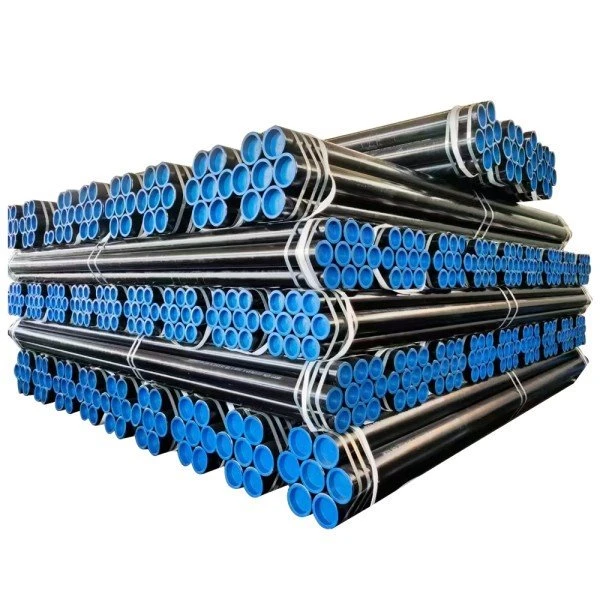

API 5L Carbon Seamless Steel Yeeb Nkab
Qauv | API 5L |
Daim ntawv pov thawj | API |
Qib | Gr.B/ X42/X52/X60/X65 |
Tawm Dia | 1/2" - 48" (DN15 - DN1200) |
Phab ntsa Thickness | 40/80/120/160 |
Ntev | 6M / 12M lossis Customized |
Xaus | Plain / Bevel |
Kev siv | Roj thiab Gas / Dej Pipeline |
Nto | Liab / Dub / Varnish / Oiled / Galvanized, 3PE, thiab lwm yam |
Specification
API 5L pipeline yog cov roj, nkev thiab dej xa mus kav dej tau teev tseg los ntawm American Petroleum Institute, suav nrog seamless thiab welded steel kav.
API 5L kab kav dej muaj nyob rau hauv ntau qib carbon steel, xaiv raws li Qib B, X42, X46, X52, X56, X60, X70, X80 thiab hauv PSL1 lossis PSL2 specification qib. Cov hauv qab no yog qhov sib txawv ntawm PSL1 thiab PSL2 thiab kev qhia txog cov qib steel ntau.
Qhov zoo ntawm API 5L Seamless Pipeline
Pab txo cov nuj nqis.
Txawm hais tias kim dua li cov yeeb nkab welded, tab sis qhov no muaj peev xwm tiv taus siab tso cai rau siv cov kav dej uas nyias thiab sib dua,
yog li tus nqi tag nrho yog qis dua.
Kev tiv thaiv zoo heev rau kev tawg rog uas tuaj yeem tshwm sim nyob rau hauv cov kav dej ntev; Cov kev pabcuam qaub haum thiab ruaj khov; Lub zog zoo heev thiab muaj peev xwm tiv taus rau hauv cov ntawv siv kub kub; Lub neej ua haujlwm ntev hauv kev lag luam kav dej.
Qhov sib txawv ntawm PSL1 & PSL2
NPS | Sab nraud txoj kab uas hla | Phab ntsa Thickness |
CVN cuam tshuam (Charpy) kuaj | Tsis xav tau | Yuav tsum muaj rau txhua qib |
Nondestructive Inspection ntawm Seamless | Tsuas yog thaum tus neeg yuav khoom qhia SR4 | SR4 yuav tsum |
Daim ntawv pov thawj | Daim ntawv pov thawj thaum tau teev tseg rau SR15 | Daim ntawv pov thawj (SR 15.1) yuav tsum tau ua |
Traceability | Traceable tsuas yog kom txog thaum tag nrho cov kev xeem dhau, tshwj tsis yog SR15 tau teev tseg | Traceable tom qab ua tiav cov kev xeem (SR 15.2) yuav tsum tau ua |
Hydrostatic Test | Yuav tsum tau | Yuav tsum tau |
Daim ntawv thov API 5L Seamless Tube Common Qib
API 5L Gr.B.Gr.B yog cov qib steel siv tshaj plaws hauv API 5L, uas yog siv rau cov kab uas tsis tshua muaj siab thiab ua haujlwm sib txawv nruab nrab, xws li kis tau tus mob roj, roj, lossis dej.
API 5L X60/X65.API 5L X60 / X65 raj xa dej kuj tseem yog qib qib feem ntau siv hauv kev lag luam roj av thiab roj thiab roj.

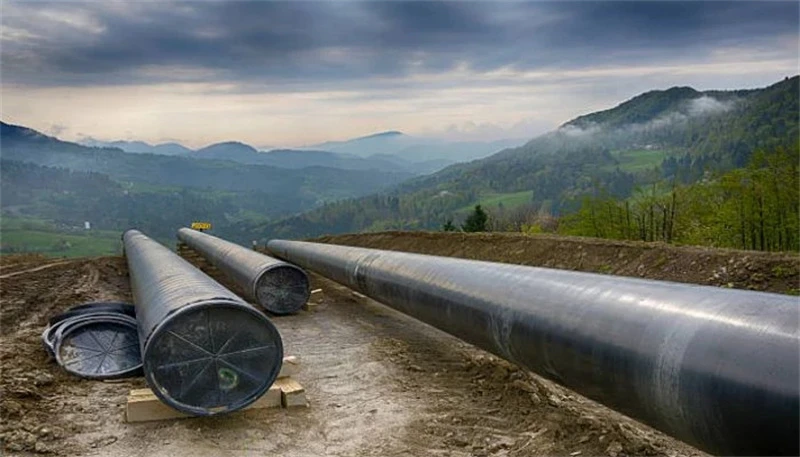

API 5L X42API 5L X42 kab yeeb nkab feem ntau yog siv rau hauv kev lag luam roj av los thauj cov roj thiab roj.Onshore, thauj cov roj thiab roj los ntawm lub taub hau mus rau refineries, thiab offshore, thauj cov roj thiab roj los ntawm platforms mus rau onshore terminals.API 5L X42 kab yeeb nkab kuj yog siv rau hauv lwm yam lag luam xws li kev lag luam tshuaj, kev thauj mus los, kev lag luam kev lag luam, kev tsim cov kav dej.
API 5L X52.X52 thiab X42 muaj tib lub hom phiaj, tab sis qhov kev sim cuam tshuam ntawm - 20 degree ntxiv rau X42.
Yog li nws yog qib siab zog steel dua li X42 thiab feem ntau yog siv rau hauv cov ntawv thov siab dua.
Tam sim no, qhov kev thov rau API 5L X52 steel kav hauv African lub teb chaws yog nce.
Piv txwv Loj
Nco tseg: Qee qhov tshwj xeeb tseem ceeb tau qhia hauv qab no, thov hu rau peb kom paub meej ntxiv.
Tus tsim | DN Tus tsim | Sab nraud txoj kab uas hla | Phab ntsa Thickness | Chav kawm hnyav | Teem caij Tsis muaj. | Test Siab, psi | |
mm | mm | Qib A | Qib B | ||||
1/2" | 15 | 21.3 | 2.77 | STD | 40 | 4.8 | 4.8 |
3.73 | XS | 80 | 5.9 | 5.9 | |||
4.78 | - | 160 | 6.2 | 6.2 | |||
7.47 | XXS | - | 6.9 | 6.9 | |||
6" | 150 | 168.3 | 4.78 | - | - | 7.0 | 8.2 |
5.56 | - | - | 8.2 | 9.6 | |||
6.35 | - | - | 9.4 | 10.9 | |||
7.11 | STD | 40 | 10.5 | 13.0 | |||
7.92 | - | - | 11.7 | 13.7 | |||
8.74 | - | - | 12.9 | 15.0 | |||
9.52 | - | - | 14.1 | 16.4 | |||
10.97 | XS | 80 | 16.2 | 18.9 |
