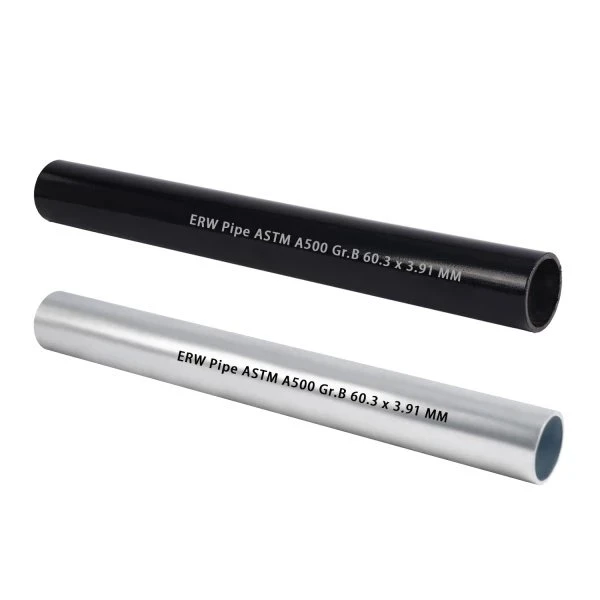

ASTM A500 ERW Cov Khoom Siv Hluav Taws Xob
Qauv | ASTM A500 1 |
Daim ntawv pov thawj | ISO |
Qib | Gr.A/B/C |
Tawm Dia | 1/2" - 16" (DN15 - DN400) |
Thickness | 2 77-12.7 hli |
Ntev | 6M / 12M lossis Customized |
Xaus | Plain / Bevel / Threaded / Grooved |
Kev siv | Qauv |
Nto | Liab / Dub / Varnish / Oiled / Galvanized, thiab lwm yam |
Specification
ERW cov kav dej feem ntau yog siv rau hauv kev siv qis lossis nruab nrab siab, ASTM A500 steel kav xws li thauj cov roj lossis dej. A500 yog ib qho txias tsim carbon steel uas yog North America qhov feem ntau teev Hollow Structural Section (HSS).Theem ntawm ASTM A500 yog qib A / B / C / D.
Qib Ayog qib qis tshaj steel hauv ASTM A500 tus qauv thiab tsim nyog rau kev siv kub. Nws muaj zoo weldability thiab formability, nrog rau zoo heev zog zog.
Qib Bntawm ASTM A500 tus qauv yog qib steel siv hauv kev tsim kho thiab muaj ntau yam. Kev siv ntau tshaj plaws ntawm qib B steel yeeb nkab yog nyob rau hauv kev tsim kho, qhov twg nws yog siv los ua txhua yam los ntawm steel framing mus rau steel beams. Nws lub zog thiab ruaj khov ua rau nws zoo tagnrho rau cov khoom siv xws li steel thav duab, thiab nws cov nqi pheej yig ua rau nws nrov rau kev siv siv dav dav.
Qib Csteel feem ntau yog siv nyob rau hauv kev tsim kho tej yaam num uas qib B steel qib kuj siv. Tab sis qib C steel yog pheej yig dua.
Qib Dmuaj cov ntsiab lus carbon siab thiab feem ntau xav tau kev kho cua sov.
Piv txwv Loj
Nco tseg: Qee qhov tshwj xeeb tseem ceeb tau qhia hauv qab no, thov hu rau peb los yog tiv tauj peb kom paub meej ntxiv.
Nominal Loj | Sab nraud txoj kab uas hla | Phab ntsa Thickness | Qhov hnyav | ||||
hauv | mm | hauv | mm | Ib/ft | kg/ft | kg/m | |
1" | 1.315 | 33.4 | 0.104 | 2.64 | 1.34 | 0.61 | 2.00 |
1 1/2" | 1.900 | 48.3 | 0.114 | 2.90 | 2.17 | 0.98 | 3.25 |
0.145 | 3.68 | 2.72 | 1.23 | 4.05 | |||
0.200 | 5.08 | 3.63 | 1.64 | 5.41 | |||
2" | 2.375 | 60.3 | 0.121 | 3.07 | 2.92 | 1.32 | 4.33 |
0.154 | 3.91 | 3.65 | 1.66 | 5.44 | |||
0.218 | 5.54 | 5.02 | 2.28 | 7.48 | |||
4" | 4.500 | 114.3 | 0.156 | 3.96 | 7.25 | 3.29 | 10.78 |
0.188 | 4.78 | 8.64 | 3.92 | 12.91 | |||
0.219 | 5.56 | 10.00 | 4.54 | 14.91 | |||
0.237 | 6.02 | 70.79 | 4.89 | 16.07 | |||
0.337 | 8.56 | 14.98 | 6.79 | 22.32 | |||
6" | 6.625 | 168.3 | 0.280 | 7.11 | 18.97 | 8.60 | 28.26 |
One-stop kev pab cuam los pab koj kev yuav khoom
Baolai Group tseem muab kev pabcuam thiab kev txhawb nqa tom qab koj yuav khoom. Txhawm rau txuag koj lub sijhawm, peb muab ntau yam kev pabcuam ntxiv rau koj xws li kev ua haujlwm, kev tswj xyuas kev thauj mus los thiab kev sim.
Kev Pabcuam:
· √OEM & ODM
· √ Cov txheej txheem tiv thaiv
· √Saw thiab nplaim taws txiav
· Beveling, Threading thiab Grooving
· √ Xav paub ntau ntxiv, thov hu rau peb pab neeg pabcuam.
Ntau tshaj li cov chaw tsim khoom, peb muab ib qho kev daws teeb meem rau koj lub lag luam. Hu rau tam sim no!
