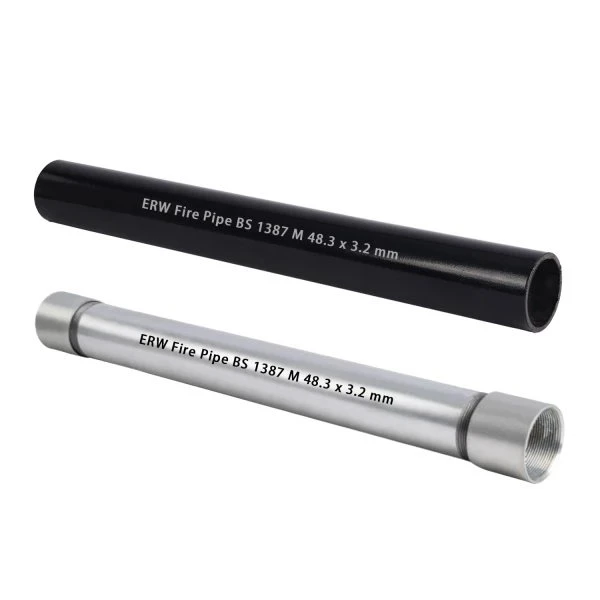

BS1387 Galvanized ERW Steel Tube
Qauv | SIB 1387 |
Daim ntawv pov thawj | ISO |
Tawm Dia | 1/2" - 6" (DN{3}} DN150) |
Phab ntsa Thickness | 2. 0mm-5.4mm |
Ntev | 6M / 12M lossis Customized |
Xaus | Grooved / Threaded / Plain |
Kev siv | Nthuav, preaction, delug lossis qhuav yeeb nkab sprinkler system |
Nto | Qhov Nto tiav tuaj yeem qhia tau los ntawm cov neeg siv khoom |
Specification
BS1387 yog sib npaug rau EN 10255 tus qauv, uas yog seamless steel yeeb nkab siv rau dej, chav thiab cua conveyance.
Qhov zoo:
Flexibility thiab yooj yim ntawm kev ua haujlwm
Muaj lub cib fim txaus los koom nrog kev cog qoob loo yav tom ntej
Ib qho yooj yim cog foundation
Lub sij hawm hloov ceev mus rau lwm txoj kab
Nruam txheej txheej
Xim Xaiv:
· SIB
Piv txwv Loj
Nco tseg: Qee qhov tshwj xeeb tseem ceeb tau qhia hauv qab no, thov hu rau peb kom paub meej ntxiv.
Tube | Nominal Loj | Sab nraud txoj kab uas hla | Phab ntsa xav | Loj ntawm Dub Tube | |||||
Max | Min | Plain End | Screwed thiab Socketed | ||||||
- | DN | mm | mm | mm | lb/ft | kg/m | lb/ft | kg/m | |
Teeb | 1/2" | 15 | 21.4 | 21.0 | 2.0 | 0.636 | 0.947 | 0.646 | 0.956 |
2" | 50 | 60.2 | 59.6 | 2.9 | 2.74 | 4.08 | 2.81 | 4.15 | |
4" | 100 | 113.9 | 113.0 | 3.6 | 6.55 | 9.75 | 6.84 | 10.0 | |
Nruab nrab | 1/2" | 15 | 21.7 | 21.1 | 2.6 | 0.813 | 1.21 | 0.828 | 1.22 |
3" | 80 | 89.5 | 88.1 | 4.0 | 5.62 | 8.37 | 5.80 | 8.54 | |
6" | 150 | 166.1 | 164.1 | 5.0 | 13.24 | 19.7 | 13.3 | 20.3 | |
Hnyav | 1/2" | 15 | 21.7 | 21.1 | 3.2 | 0.968 | 1.44 | 0.983 | 1.45 |
3" | 80 | 89.5 | 88.1 | 5.0 | 6.92 | 10.3 | 6.87 | 10.5 | |
6" | 150 | 166.1 | 164.1 | 5.4 | 14.31 | 21.3 | 14.7 | 21.9 |
One-stop kev pab cuam los pab koj kev yuav khoom
Baolai Group tseem muab kev pabcuam thiab kev txhawb nqa tom qab koj yuav khoom. Txhawm rau txuag koj lub sijhawm, peb muab ntau yam kev pabcuam ntxiv rau koj xws li kev ua haujlwm, kev tswj xyuas kev thauj mus los thiab kev sim.
Kev Pabcuam:
· √OEM & ODM
· √ Cov txheej txheem tiv thaiv
· √Saw thiab nplaim taws txiav
√ Beveling, Threading thiab Grooving
· √ Yog xav paub ntxiv, thov hu rau peb pab neeg pabcuam.
Ntau tshaj li cov chaw tsim khoom, peb muab ib qho kev daws teeb meem rau koj lub lag luam. Hu rau tam sim no!
