Stainless Hlau Sheets Thiab Phaj

Stainless hlau phaj muaj ib tug du nto, siab plasticity, toughness thiab mechanical zog, thiab yog resistant rau corrosion los ntawm acids, alkaline gases, kev daws teeb meem thiab lwm yam xov xwm.

Xa kev nug

Khoom Taw qhia

Specification

Khoom siv	202 / 304 / 304L / 304H / 309S / 310S / 316 / 316L / 316Ti / 317L / 321 / 321H / 347 / 347H / 410 / 410S / plexus / 4401uD / 420 / 420 / 420 / 420 / 420 / 420 / 420 / 410S
Khoom siv	UNS No. - UNS S30400, UNS S30403, UNS S31008, UNS S31620, UNS S31603, UNS S31603, UNS S31635, UNS S31703, UNS S32100, UNS S34700, UNS9, UNS
Kev kho saum npoo	2B, 2D, BA, NO. 1, NO. 4, NUJ. 8, 8K, daim iav, checkered, embossed, plaub hau kab, xuab zeb moj tej tawg, Txhuam, etching, Titanium txheej, thiab lwm yam
Loj	W * L (mm): 1250 * 1000-12000; 1500 * 1000-12000, 1800 * 1000-12000, 2000 * 1000-12000
Thickness	0.25 ~ 150 hli
Ntev	Tsawg dua 12m lossis raws li xav tau lossis kho
Cov qauv	ASTM, AISI, SUS, JIS, EN, DIN, BS, GB

Chemical Composition & Mechanical Property

Tshuaj Kev sib xyaw	ASTM Qib	C	Si	Mn	P	S	Ni	Cr	Mo
	ASTM 201 UAS	Tsawg dua lossis sib npaug rau 0.15	Tsawg dua los yog sib npaug rau 1.00	5.50~7.50	Tsawg dua lossis sib npaug rau 0.060	Tsawg dua lossis sib npaug rau 0.03	1.00 ~1.50	13.50~15.00	\
	ASTM 202 UAS	Tsawg dua lossis sib npaug rau 0.15	Tsawg dua los yog sib npaug rau 1.00	7.50~10.00	Tsawg dua lossis sib npaug rau 0.060	Tsawg dua lossis sib npaug rau 0.03	4.00~6.00	17.00~19.00	\
	Qauv: ASTM 304	Tsawg dua lossis sib npaug rau 0.08	Tsawg dua los yog sib npaug rau 1.00	Tsawg dua lossis sib npaug rau 2.00	Tsawg dua lossis sib npaug rau 0.045	Tsawg dua lossis sib npaug rau 0.03	8.00~11.00	18.00~20.00	\
	ASTM 304L 1	Tsawg dua lossis sib npaug rau 0.035	Tsawg dua los yog sib npaug rau 1.00	Tsawg dua lossis sib npaug rau 2.00	Tsawg dua lossis sib npaug rau 0.045	Tsawg dua lossis sib npaug rau 0.03	8.00~13.00	18.00~20.00	\
	ASTM 316, UAS	Tsawg dua lossis sib npaug rau 0.08	Tsawg dua los yog sib npaug rau 1.00	Tsawg dua lossis sib npaug rau 2.00	Tsawg dua lossis sib npaug rau 0.045	Tsawg dua lossis sib npaug rau 0.03	10.00~14.00	16.00~18.00	2.00~3.00
	ASTM 316L Cov Lus Qhia	Tsawg dua lossis sib npaug rau 0.035	Tsawg dua los yog sib npaug rau 1.00	Tsawg dua lossis sib npaug rau 2.00	Tsawg dua lossis sib npaug rau 0.045	Tsawg dua lossis sib npaug rau 0.03	10.00~14.00	16.00~18.00	2.00~3.00
	ASTM 316L Ti	Tsawg dua lossis sib npaug rau 0.08	Tsawg dua los yog sib npaug rau 1.00	Tsawg dua lossis sib npaug rau 2.00	Tsawg dua lossis sib npaug rau 0.045	Tsawg dua lossis sib npaug rau 0.03	10.00~14.00	16.00~18.00	2.00~3.00
	ASTM 409L 1	Tsawg dua lossis sib npaug rau 0.03	Tsawg dua los yog sib npaug rau 1.00	Tsawg dua los yog sib npaug rau 1.00	Tsawg dua lossis sib npaug rau 0.040	Tsawg dua lossis sib npaug rau 0.03	\	10.50~11.75	\
	ASTM 904L thiab ASTM 904L	Tsawg dua lossis sib npaug rau 0.02	Tsawg dua los yog sib npaug rau 1.00	Tsawg dua lossis sib npaug rau 2.00	Tsawg dua lossis sib npaug rau 0.045	Tsawg dua lossis sib npaug rau 0.035	23.0-28.0	19.0-23.0	4.0-5.0
Neeg kho tshuab Khoom	Qib ntawm Cov Khoom Siv	Elongation (%)		Tensile zog (Rm) N / m³		Yield zog (Rp) 0.2 feem pua N/m³		Hardness (HV)
	ASTM 201 UAS	Ntau dua lossis sib npaug li 35		Ntau dua lossis sib npaug li 520		Ntau dua lossis sib npaug li 210		Tsawg dua lossis sib npaug li 253
	ASTM 202 UAS	Ntau dua lossis sib npaug li 35		Ntau dua lossis sib npaug li 590		Ntau dua lossis sib npaug li 210		Tsawg dua lossis sib npaug li 218
	Qauv: ASTM 304	Ntau dua lossis sib npaug li 35		Ntau dua lossis sib npaug li 520		Ntau dua lossis sib npaug li 210		Tsawg dua los yog sib npaug li 200
	ASTM 304 L	Ntau dua lossis sib npaug li 35		Ntau dua lossis sib npaug rau 480		Ntau dua los yog sib npaug rau 180		Tsawg dua los yog sib npaug li 200
	ASTM 316 (Tshooj 316	Ntau dua lossis sib npaug li 35		Ntau dua lossis sib npaug li 520		Ntau dua lossis sib npaug li 210		Tsawg dua los yog sib npaug li 200
	ASTM 316L Cov Lus Qhia	Ntau dua lossis sib npaug li 35		Ntau dua lossis sib npaug rau 480		Ntau dua los yog sib npaug rau 180		Tsawg dua los yog sib npaug li 200
	ASTM 316 Ti	Ntau dua lossis sib npaug li 40		Ntau dua lossis sib npaug li 520		Ntau dua lossis sib npaug rau 205		Tsawg dua los yog sib npaug li 200
	ASTM 409L 1	Ntau dua lossis sib npaug li 25		Ntau dua lossis sib npaug rau 360		Ntau dua lossis sib npaug rau 175		Tsawg dua los yog sib npaug li 175
	ASTM 904L thiab ASTM 904L	Ntau dua lossis sib npaug li 35		Ntau dua lossis sib npaug li 490		Ntau dua lossis sib npaug rau 216		\

Khoom Description

BAOLAI® Stainless (SS) cov nplooj ntawv thiab daim hlau daim ntawv thov:

Daim ntawv thov	1. Khoom noj khoom haus, tshwj xeeb tshaj yog nyob rau hauv npias brewing, mis nyuj ua & winemaking
	2. Cov rooj zaum hauv chav ua noj, dab dej, troughs, khoom siv, thiab khoom siv
	3. Architectural paneling, railings & trim
	4. Cov thawv ntim tshuaj, suav nrog rau kev thauj mus los
	5. Kub Exchangers
	6. Woven lossis welded cov ntxaij vab tshaus rau mining, quarrying & dej pom
	7. Cov yeeb nkab fittings, lub luj tshib, tee, reducer, flange, thiab lwm yam

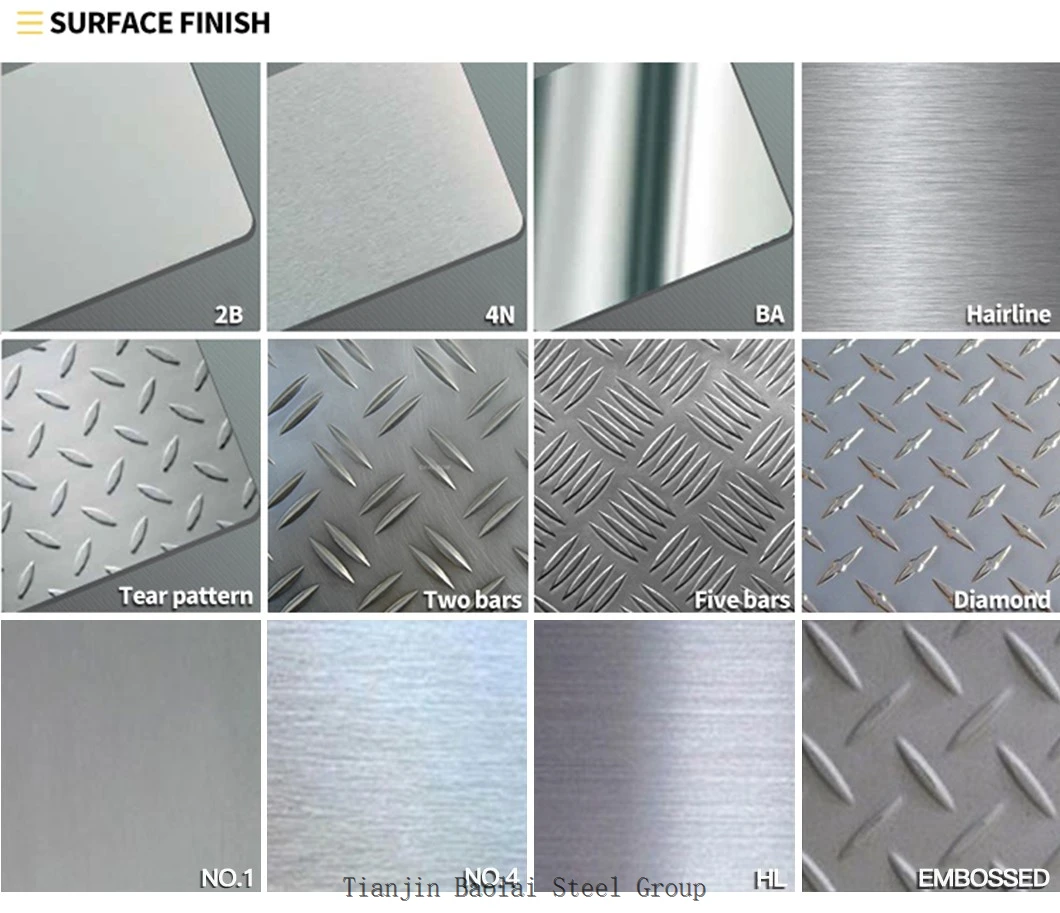

Nto tiav

Ua kom tiav	Txhais	Daim ntawv thov
2B	Cov tiav lawm, tom qab txias dov, los ntawm kev kho cua sov, pickling, los yog lwm yam sib npaug kev kho mob, thiab thaum kawg los ntawm txias dov los muab cov luster tsim nyog.	Cov khoom siv kho mob, kev lag luam zaub mov, khoom siv hauv tsev, thiab cov khoom siv hauv tsev.
BA / 8K iav	Cov txheej txheem nrog ci cua sov kho tom qab txias dov.	Cov khoom siv hauv tsev, khoom siv hluav taws xob, kev tsim vaj tsev.
NO.3	Cov tiav los ntawm polishing nrog No.100 rau No.120 abrasives teev nyob rau hauv JIS R6001.	Cov cuab yeej siv hauv tsev, kev tsim vaj tsev.
NO.4	Polished nrog abrasive siv ntawm grit #150-#180, muaj qhov ci zoo dua nrog tsis tu ncua coarse stria, tab sis nyias dua No3.	Cov khoom siv hauv chav ua noj, Kev tsim vaj tsev, khoom siv kho mob, khoom noj khoom haus, thiab lwm yam.
Cov plaub hau	Cov tiav polishing thiaj li muab cov polishing nruam streaks los ntawm kev siv abrasive ntawm cov nplej loj.	Kev tsim kho vaj tse, elevators, lub qhov rooj ntawm lub tsev, pem hauv ntej phaj, thiab lwm yam.
NO.1	Qhov saum npoo yog tiav los ntawm kev kho cua sov thiab pickling lossis cov txheej txheem sib thooj rau tom qab kub dov.	Chemical tank, yeeb nkab.

Qhov txawv ntawm 304 thiab 316 Stainless Hlau

	304 Stainless hlau	316 Stainless hlau
Kev piav qhia	Qib 304 stainless hlau feem ntau suav hais tias yog cov hlau tsis zoo tshaj plaws austenitic. Nws muaj cov ntsiab lus npib tsib xee siab uas feem ntau yog nruab nrab ntawm 8 thiab 10.5 feem pua ntawm qhov hnyav thiab qhov ntau ntawm chromium ntawm kwv yees li 18 mus rau 20 feem pua ntawm qhov hnyav. Lwm cov ntsiab lus tseem ceeb xws li manganese, silicon, thiab carbon. Cov seem ntawm cov tshuaj muaj pes tsawg leeg yog cov hlau.	Zoo ib yam li 304, Qib 316 stainless hlau muaj ntau cov chromium thiab npib tsib xee. 316 kuj muaj silicon, manganese, thiab carbon, nrog rau feem ntau ntawm cov muaj pes tsawg leeg yog hlau. Qhov sib txawv loj ntawm 304 thiab 316 stainless hlau yog cov tshuaj lom neeg muaj pes tsawg leeg, nrog 316 muaj qhov tseem ceeb ntawm molybdenum; Feem ntau 2 mus rau 3 feem pua ntawm qhov hnyav vs tsuas yog cov lej pom nyob rau hauv 304. Cov ntsiab lus molybdenum siab dua ua rau qib 316 muaj zog tiv thaiv corrosion.
Daim ntawv thov	1.Daim ntawv thov yuav tsum tau zoo heev formability. Cov ntsiab lus molybdenum siab dua hauv Qib 316 tuaj yeem muaj kev cuam tshuam tsis zoo rau kev tsim. 2. Daim ntawv thov muaj kev txhawj xeeb txog tus nqi. Qib 304 feem ntau pheej yig dua qib 316.	1. Ib puag ncig muaj xws li cov khoom muaj corrosive ntau. 2. Cov khoom yuav muab tso rau hauv qab dej los yog raug dej tsis tu ncua. 3. Nyob rau hauv daim ntawv thov uas yuav tsum tau muaj zog thiab hardness ntau dua.

Peb Qhov Zoo

Kev ruaj ntseg zoo

Nqe kom zoo dua

Hoobkas lag luam wholesale

Kev pabcuam hwm

SHIPMENT THIAB LOADING Tel: plus 86 2228352066

Ntim	Nyob rau hauv Ntoo rooj plaub los yog nyob rau hauv Bundles los yog raws li qhov yuav tsum tau ntawm cov neeg muas zaub
Lub sijhawm them nyiaj	L/C, T/T, D/P
Lub sij hawm xa tuaj	15 mus rau 30 hnub tom qab them nyiaj lossis raws li daim ntawv cog lus
Kev thauj mus los	Los ntawm Hiav Txwv / Los Ntawm Cua
Cov ntsiab lus xa khoom	EXW CIF CFR FOB
