H Steel beams HEA / HEB yog ib hom kev siv steel ntau heev. Beams, txwv tsis pub hu ua "H" ntu, kab teeb sab av loj, lossis HEA / HEB, muaj nyob hauv ntau qib khoom, feem ntau yog EN 10025 S275, thiab S355. H seem zoo ib yam li kuv seem, tab sis lub flange yog dav dua.

Xa kev nug

Khoom Taw qhia

HEA&HEB Beams Example Size

HEA Beams Sizes, thiab Mechanical Properties

HEA Beam Sizes					Qhov hnyav (kg / m)	Thaj tsam (cm2)
b	h	a	e	r
UAS 100	96	5,0	8,0	12	16,7	21,24
TIAB SA 120	114	5,0	8,0	12	19,9	25,34
TIAB SA 140	133	5,5	8,5	12	24,7	31,42
TIAB SA 160	152	6,0	9,0	15	30,4	38,77
TIAB SA 180	171	6,0	9,5	15	35,5	45,25
TSI 200	190	6,5	10,0	18	42,3	53,83
TIAB SA 220	210	7,0	11,0	18	50,5	64,34
TIAB SA 240	230	7,5	12,0	21	60,3	76,84
TIAB SA 260	250	7,5	12,5	24	68,2	86,82
TIAB SA 280	270	8,0	13,0	24	76,4	97,26
TSI 300	290	8,5	14,0	27	88,3	112,5
TSI 300	310	9,0	15,5	27	97,6	124,4
TSI 300	330	9,5	16,5	27	105,0	133,5
TSI 300	350	10,0	17,5	27	112,0	142,8
TSI 300	390	11,0	19,0	27	125,0	159,0
TSI 300	440	11,5	21,0	27	140,0	178,0
TSI 300	490	12,0	23,0	27	155,0	197,5
TSI 300	540	12,5	24,0	27	166,0	211,8
TSI 300	590	13,0	25,0	27	178,0	226,5
TSI 300	640	13,5	26,0	27	190,0	241,6
TSI 300	690	14,5	27,0	27	204,0	260,5
TSI 300	790	15,0	28,0	30	224,0	285,8
TSI 300	890	16,0	30,0	30	252,0	320,5
TSI 300	990	16,5	31,0	30	272,0	346,8

HEB Beams Sizes, thiab Mechanical Properties

HEB Beam Sizes					Qhov hnyav (kg / m)	Thaj tsam (cm2)
b	h	a	e	r
HIB 100	100	6,0	10,0	12	20,4	26,04
SIB 120	120	6,5	11,0	12	26,7	34,01
SIB 140	140	7,0	12,0	12	33,7	42,96
SIB 160	160	8,0	13,0	15	42,6	54,25
SIB 180	180	8,5	14,0	15	51,2	65,25
SIB 200	200	9,0	15,0	18	61,3	78,08
SIB 220	220	9,5	16,0	18	71,5	91,04
SIB 240	240	10,0	17,0	21	83,2	106,0
SIB 260	260	10,0	17,5	24	93,0	118,4
SIB 280	280	10,5	18,0	24	103,0	131,4
SIB 300	300	11,0	19,0	27	117,0	149,1
SIB 300	320	11,5	20,5	27	127,0	161,3
SIB 300	340	12,0	21,5	27	134,0	170,9
SIB 300	360	12,5	22,5	27	142,0	180,6
SIB 300	400	13,5	24,0	27	155,0	197,8
SIB 300	450	14,0	26,0	27	171,0	218,0
SIB 300	500	14,5	28,0	27	187,0	238,6
SIB 300	550	15,0	29,0	27	199,0	254,1
SIB 300	600	15,5	30,0	27	212,0	270,0
SIB 300	650	16,0	31,0	27	225,0	286,3
SIB 300	700	17,0	32,0	27	241,0	306,4
SIB 300	800	17,5	33,0	30	262,0	334,2
SIB 300	900	18,5	35,0	30	291,0	371,3
SIB 300	###	19,0	36,0	30	314,0	400,0

Khoom Description

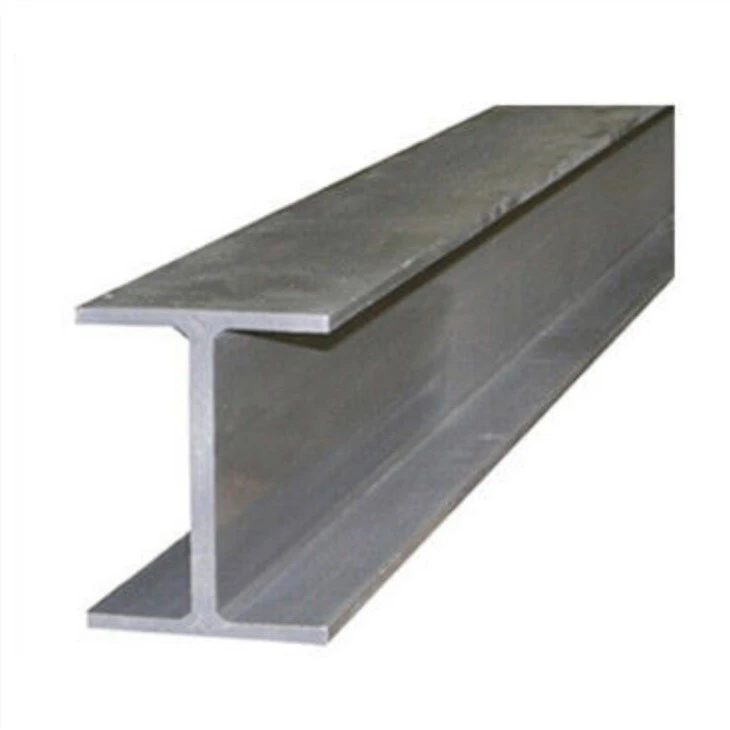

Tus ntoo khaub lig-sectional zoo ib yam li ib qho kev lag luam cross-section profile ntawm lub peev Latin tsab ntawv H, tseem hu ua universal steel beam.Cov hla ntu ntawm H-shaped steel feem ntau suav nrog ob ntu, lub vev xaib thiab flange, kuj paub. raws li lub duav thiab ntug.

H beam yog dav siv, feem ntau yog siv nyob rau hauv: ntau yam civil thiab industrial vaj tse; ntau yam loj-span industrial nroj tsuag thiab niaj hnub high-sawv vaj tse, tshwj xeeb tshaj yog muaj cov nroj tsuag nyob rau hauv cov cheeb tsam uas nquag seismic kev ua ub no thiab high-temperature ua hauj lwm tej yam kev mob; yuav tsum tau muaj peev xwm loj thiab hla ntu loj txuas hniav nrog kev ruaj ntseg zoo thiab loj spans; khoom siv hnyav; txoj kev loj; nkoj skeletons; kev txhawb nqa kuv; lub hauv paus kev kho mob thiab dam engineering; ntau yam tshuab Cheebtsam.
