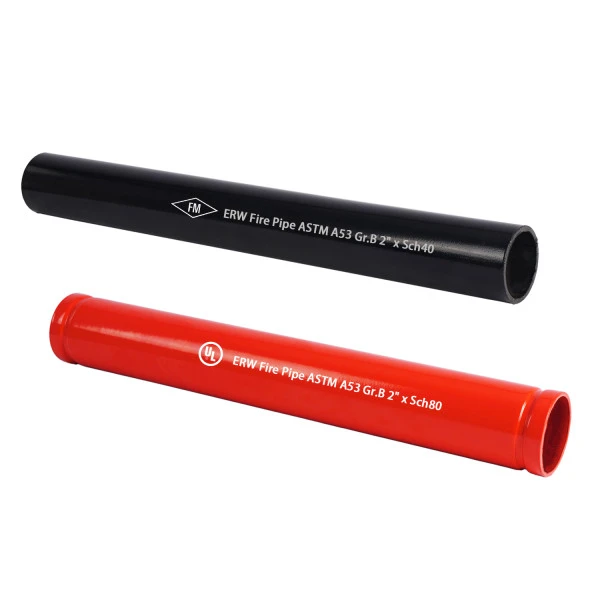

ASTM A53 Seamless Fire Protection Pipes
Qauv | ASTM A53 / UL852 |
Daim ntawv pov thawj | UL / FM |
Qib | Gr.A/B |
Tawm Dia | 1/2" - 14" (DN{3}} DN350) |
Thickness | 2 77 - 30.96 hli |
Ntev | 5.8M / 6M / 12M lossis Customized |
Xaus | Plain / Beveled / Yob zawj / NPT / BSPT |
Kev siv | Nthuav, preaction, delug lossis qhuav yeeb nkab sprinkler system |
Nto | Liab / Dub / Liab epoxy lossis polyester / Galvanized |
Specification
Baolai's A53 Schedule 40 steel fire sprinkler yeeb nkab yog UL Listed, qhov ntau thiab tsawg 1-14", rau siv nyob rau hauv hluav taws sprinkler yeeb nkab daim ntaub ntawv, thiab yog haum rau welding, threading thiab grooved.
Qhov zoo:
Flexibility thiab yooj yim ntawm kev ua haujlwm
Muaj lub cib fim txaus los koom nrog kev cog qoob loo yav tom ntej
Ib qho yooj yim cog foundation
Lub sij hawm hloov ceev mus rau lwm txoj kab
Piv txwv Loj
Nco tseg: Qee qhov tshwj xeeb tseem ceeb tau qhia hauv qab no, thov hu rau peb kom paub meej ntxiv.
Sab nraud txoj kab uas hla | TUB NTXHAIS | Kuaj Siab | |||
DN | hauv. | mm | mm | Mpa | |
Sch40 | 25 | 1" | 33.4 | 3.38 | 4.8 |
32 | 1-1/4" | 42.2 | 3.56 | 9.0 | |
40 | 1-1/2" | 48.3 | 3.68 | 9.0 | |
50 | 2" | 60.3 | 3.91 | 17.2 | |
65 | 2-1/2" | 73 | 5.16 | 17.2 | |
80 | 3" | 88.9 | 5.49 | 17.2 | |
100 | 4" | 114.3 | 6.02 | 15.2 | |
125 | 5" | 141.3 | 6.55 | 13.4 | |
150 | 6" | 168.3 | 7.11 | 12.3 | |
Sch80 | 25 | 1" | 33.4 | 4.55 | 5.9 |
32 | 1-1/4" | 42.2 | 4.85 | 13.1 | |
40 | 1-1/2" | 48.3 | 5.08 | 13.1 | |
50 | 2" | 60.3 | 5.54 | 17.2 | |
65 | 2-1/2" | 73 | 7.01 | 17.2 | |
80 | 3" | 88.9 | 7.62 | 17.2 | |
100 | 4" | 114.3 | 8.56 | 19.3 | |
125 | 5" | 141.3 | 9.53 | 19.3 | |
150 | 6" | 168.3 | 10.97 | 18.9 |
One-stop kev pab cuam los pab koj kev yuav khoom
Baolai Group tseem muab kev pabcuam thiab kev txhawb nqa tom qab koj yuav khoom. Txhawm rau txuag koj lub sijhawm, peb muab ntau yam kev pabcuam ntxiv rau koj xws li kev ua haujlwm, kev tswj xyuas kev thauj mus los thiab kev sim.
Kev Pabcuam:
· √OEM & ODM
· √ Cov txheej txheem tiv thaiv
· √Saw thiab nplaim taws txiav
· Beveling, Threading thiab Grooving
· √ Yog xav paub ntxiv, thov hu rau peb pab neeg pabcuam.
Ntau tshaj li cov chaw tsim khoom, peb muab ib qho kev daws teeb meem rau koj lub lag luam. Hu rau tam sim no!
